Please find documentation on available Low Voltage communication cables here below.
Could you not find the cable you are looking for, or cannot determine which part number represents your cable? Please use the vehicle specific information found on this website.
Please note: cables released until 2025 are Interface Box based. Cables released as of 2025 and after are IMI-Box based.
Simply click on the picture to enlarge it and zoom in.
Interface Box based cables
| Part Number | Picture | Label/Tag | Connector (Count and Colour) |
|---|---|---|---|
| A793 – 130-000741 |  | ||
| A841 – 130-000769 |  | None | (Black) |
| A842 – 130-000822 |  | G-8 AE EV PE (-12 (2P6S*2) / AEEV CABLE 2 | 4 (all white) |
| A843 – 130-000823 |  | G-9 AE EV PE (-20 (2P10S*2) / (AEEV CABLE 3) | 4 (all white) |

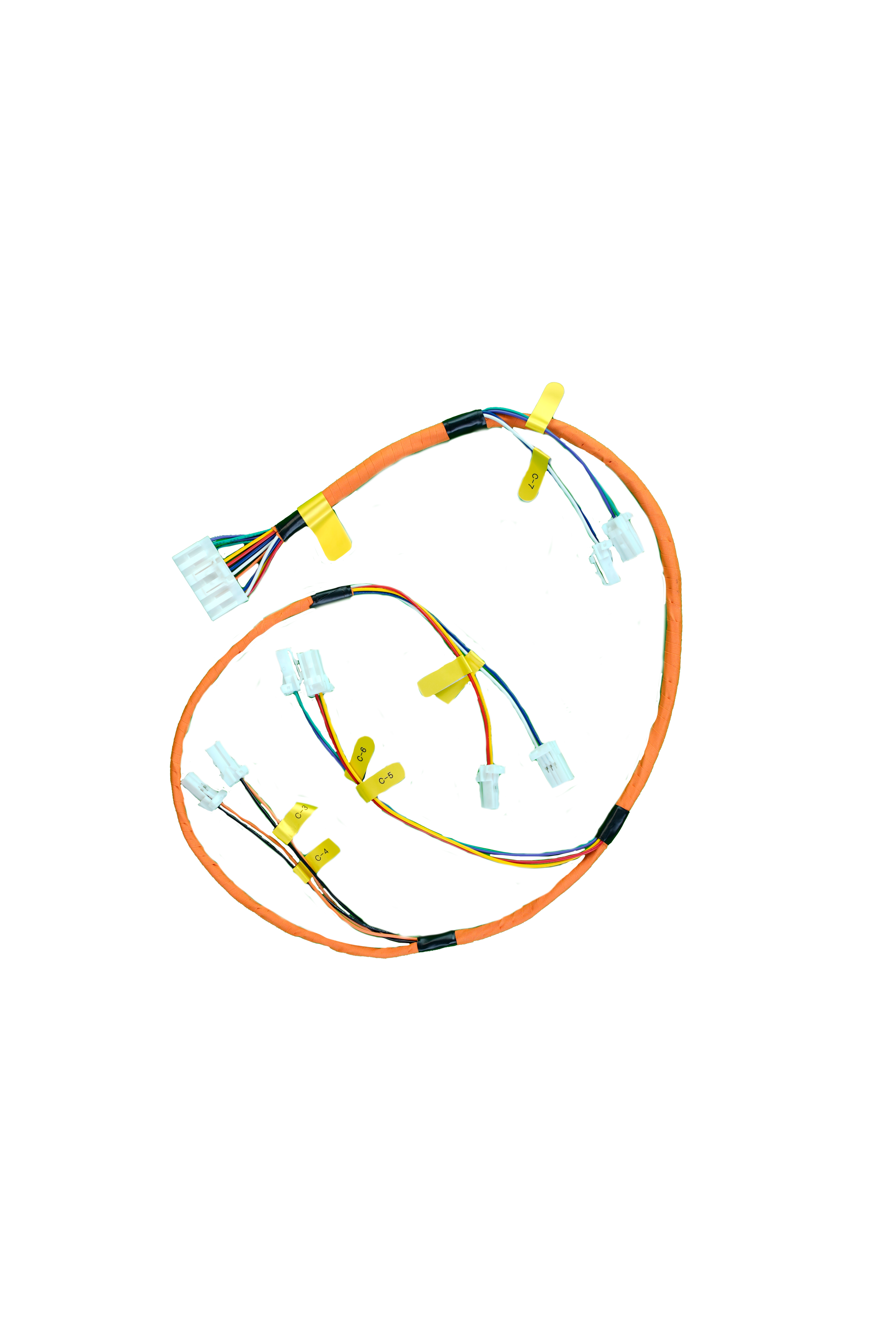

| A844 – 130-000824 |  | G-7 AE EV PE(-12 (2P3S*4) / AEEV CABLE 1 | 8 (all white) |
| A847 – 130-000847 |  | RR – NE EV | |

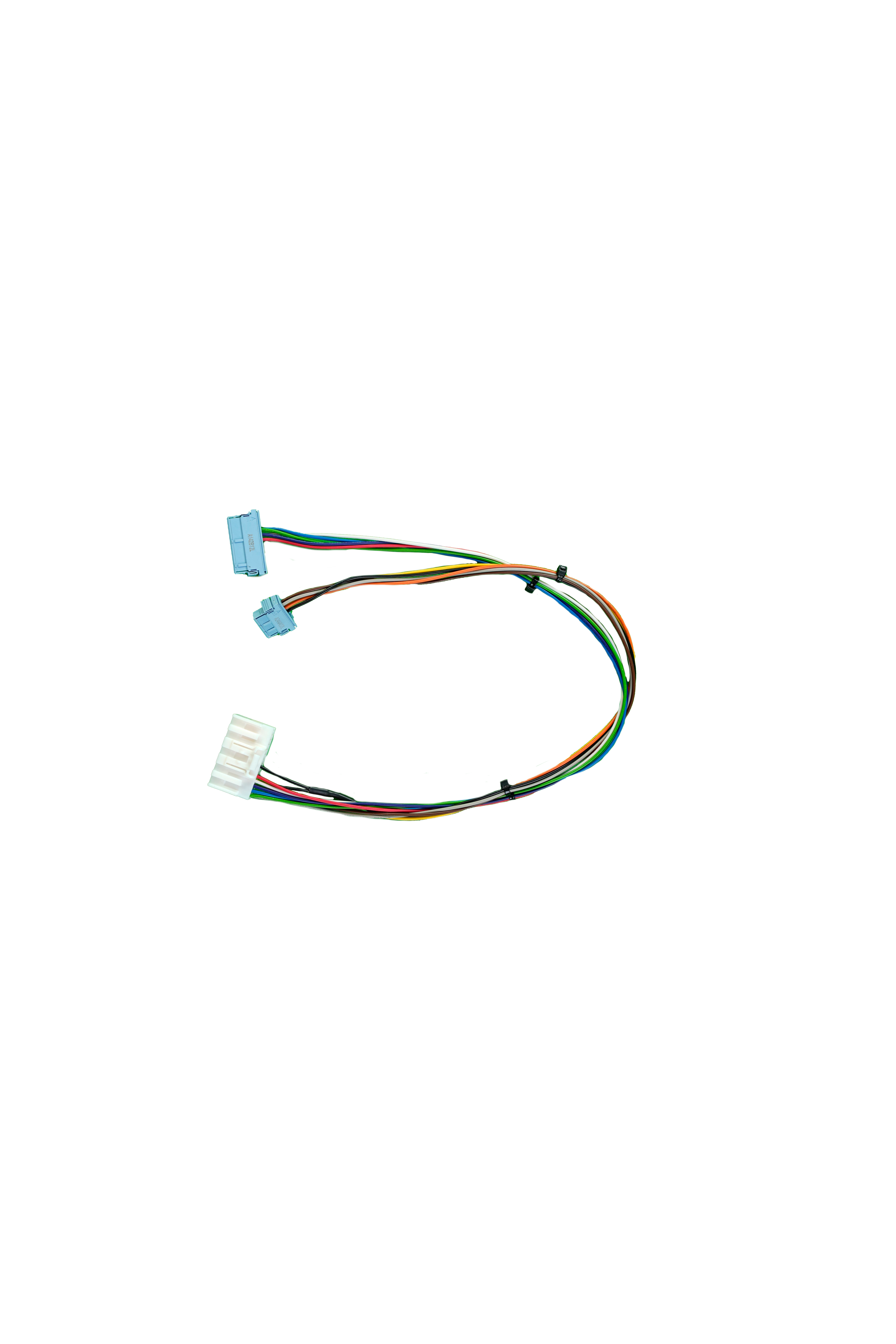

| A848 – 130-000848 |  | KONA HALF BALANCE / A848 | |

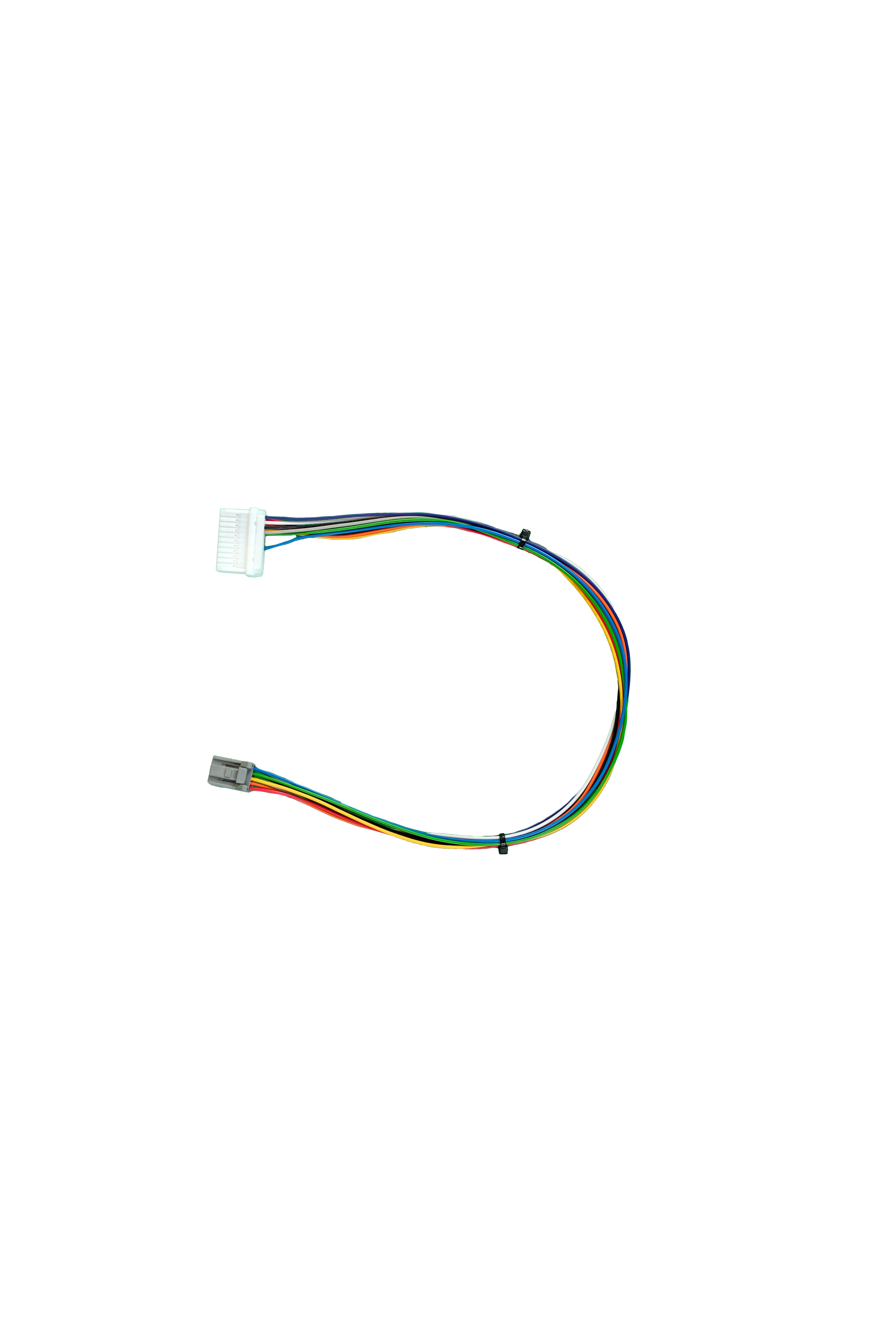

| A853 – 130-000867 |  | LF HEV/IG HEV | |

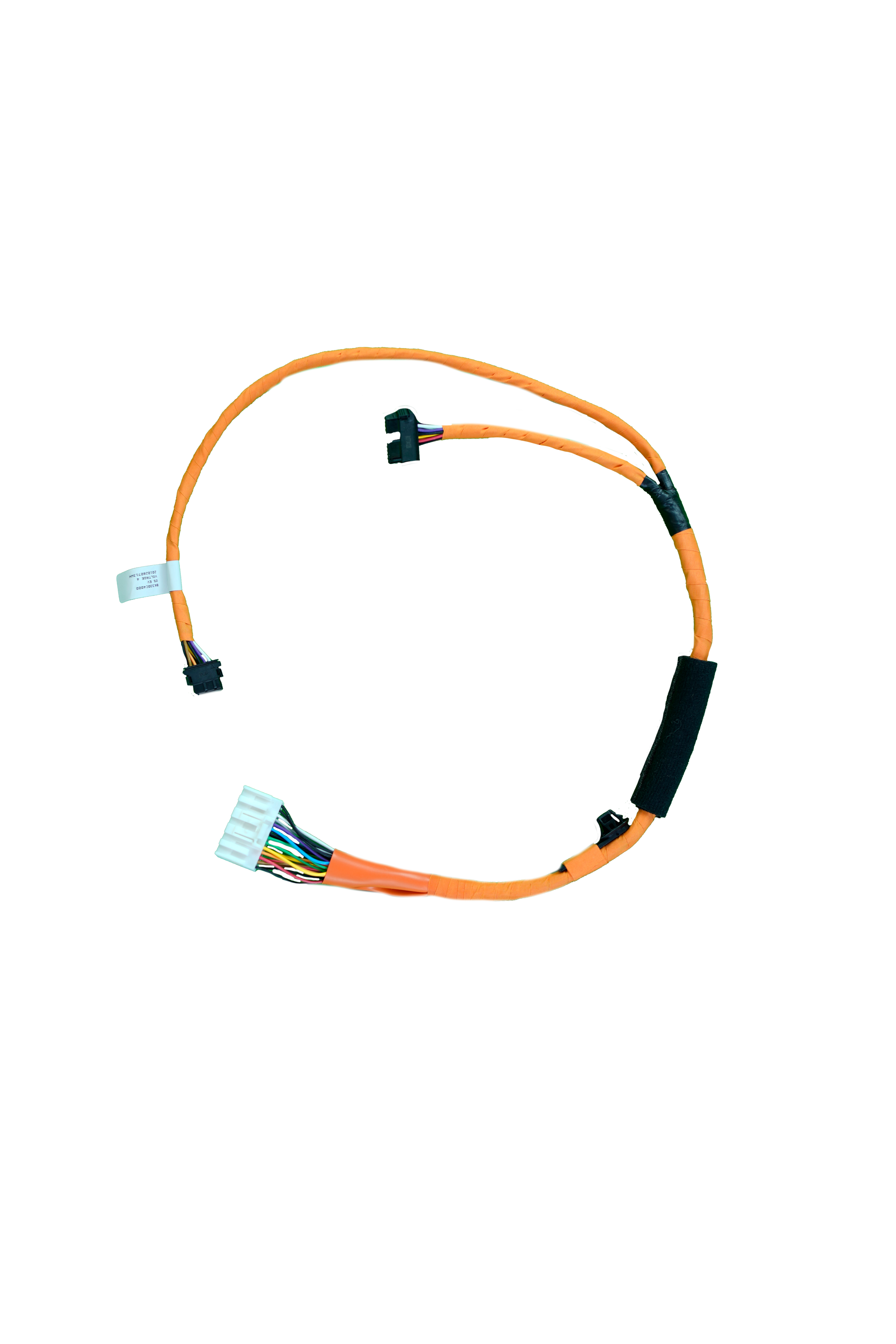

| A856 – 130-000786 |  | OS EV Voltage 4 / G-2 / BK330C4000″ | 2 (black / black) |

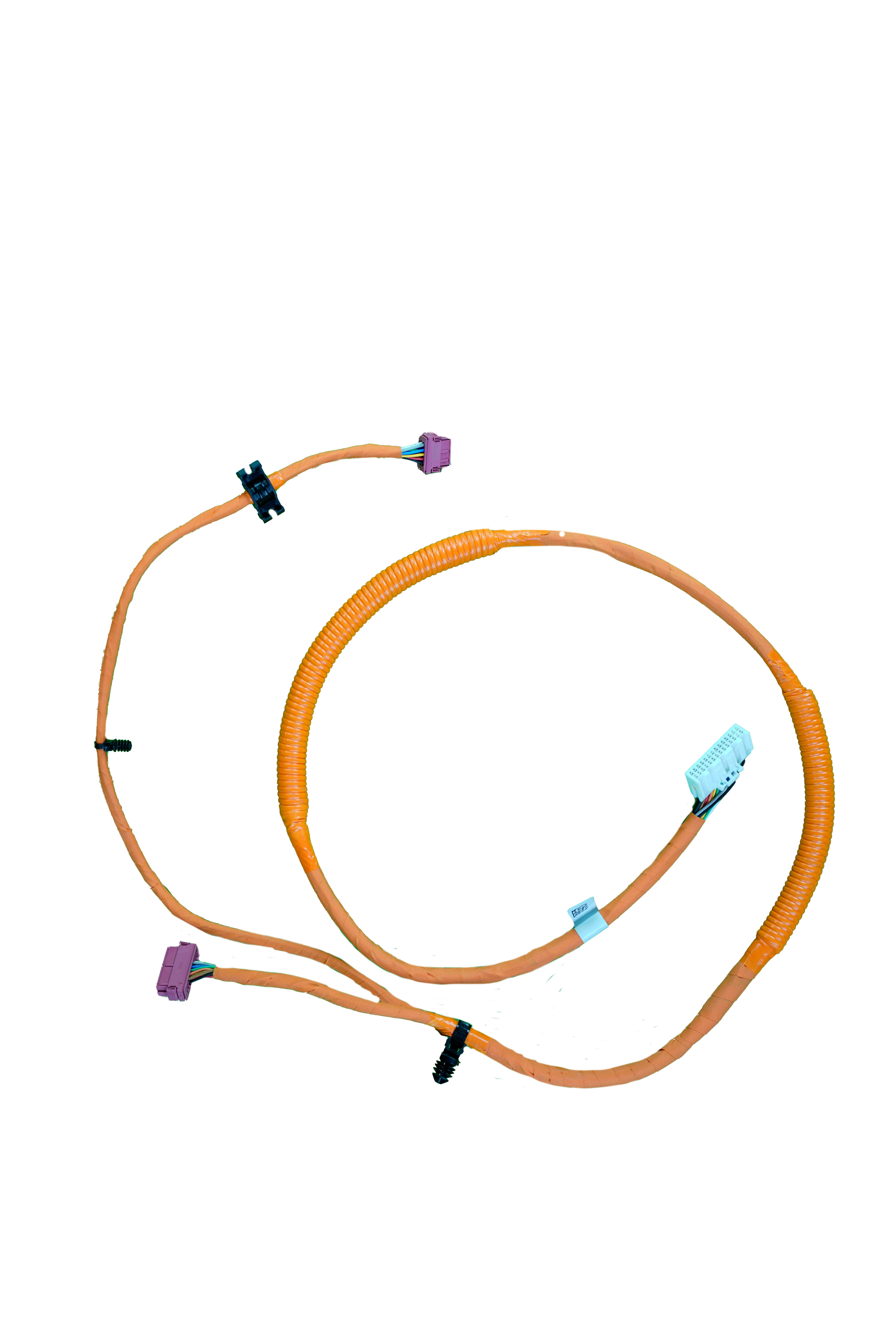

| A857 – 130-000787 |  | OS EV Voltage 2 / G-1 / BK330C2000 | 2 (pink/pink) |

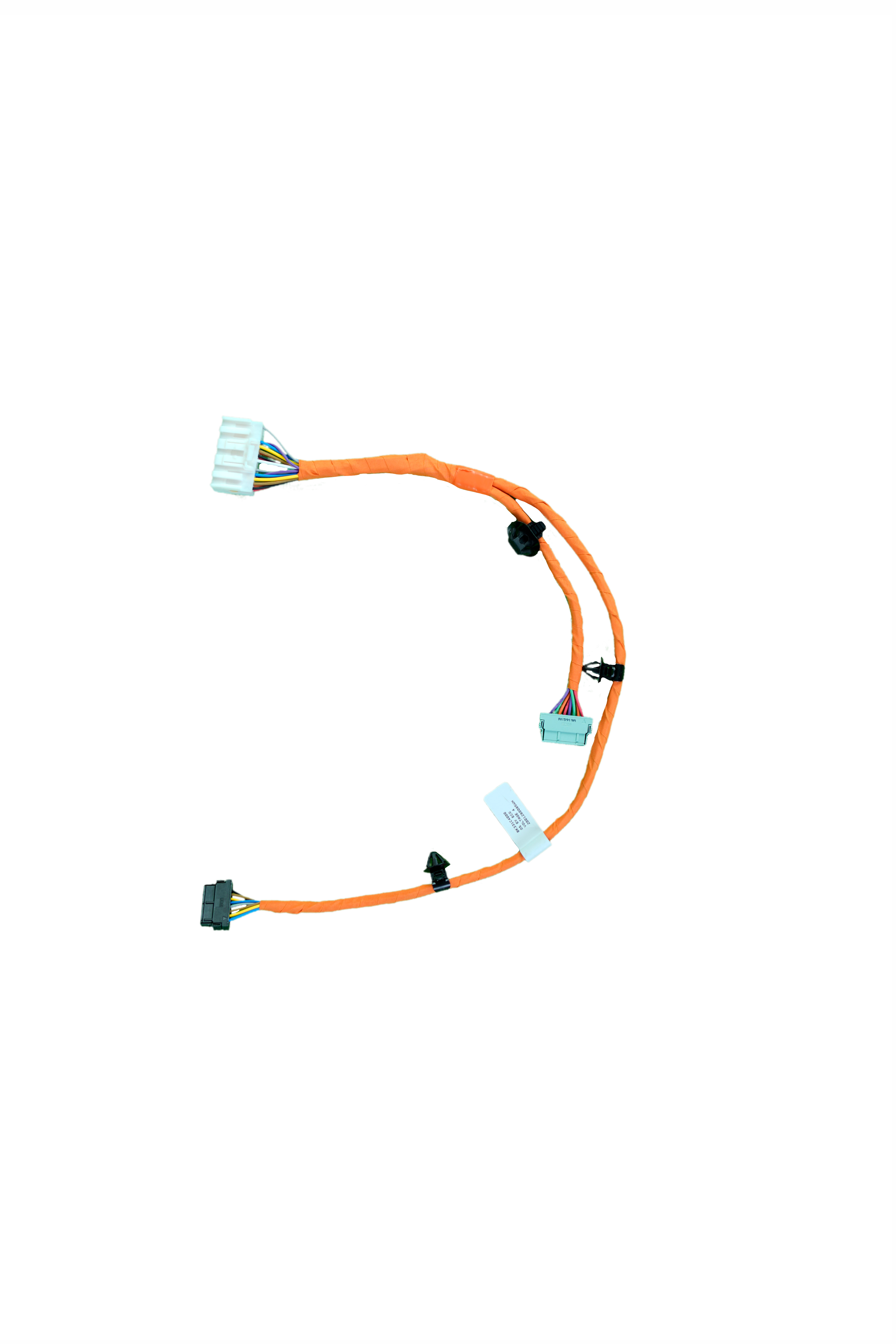

| A858 – 130-000788 |  | OS EV ECO Voltage 4 / G-3 / BK331C4000 | 2 (black/green) |

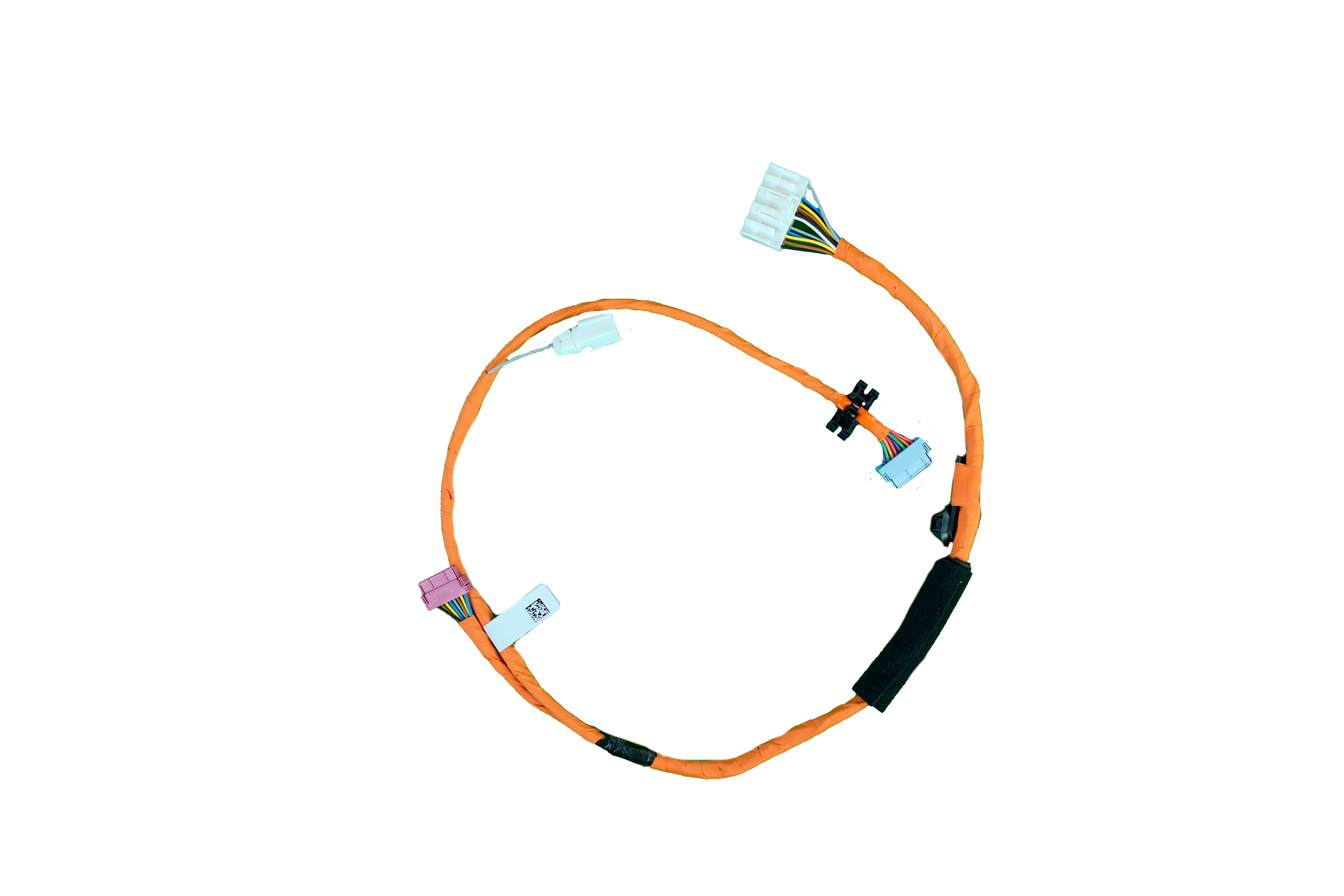

| A859 – 130-000789 |  | OS EV ECO Voltage 5 / G-4 / BK331C5000 | 3 (white/red/grey) |
| A860 – 130-000871 |  | RG3OK | |
| A861 – 130-000925 |  | DN8/NX4 HEV | |
| A864 – 130-000864 |  | IONIQ PHEV RH | |
| A923 – 130-000957 | Work in progress | YF/HG (HEV) | |

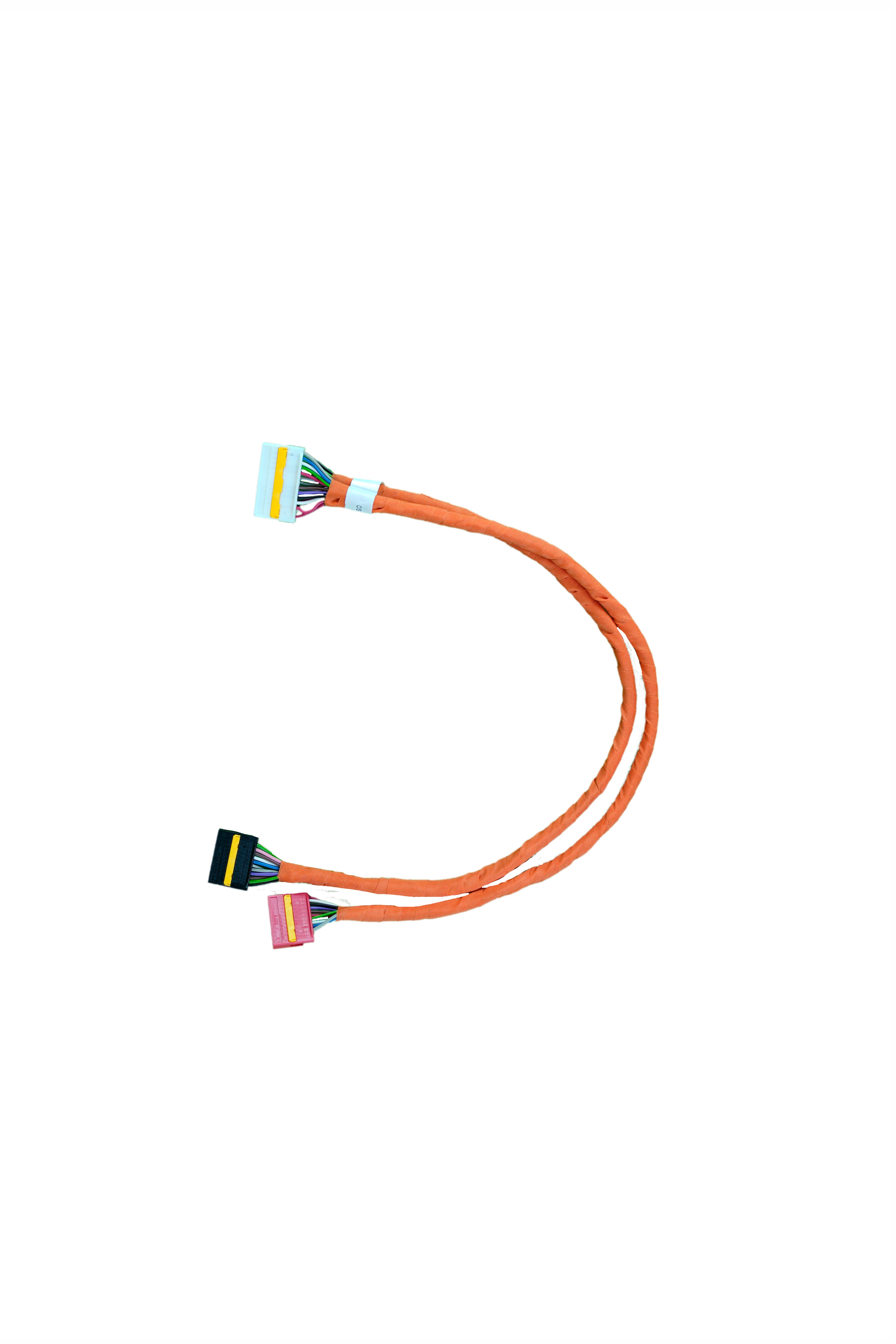

| A926 – 130-000965 |  | OSE EV 3P19S/3P10S | 2 (red/black) |
| A927 – 130-000966 | OSe EV-3P20S | 2 (blue / grey) | |

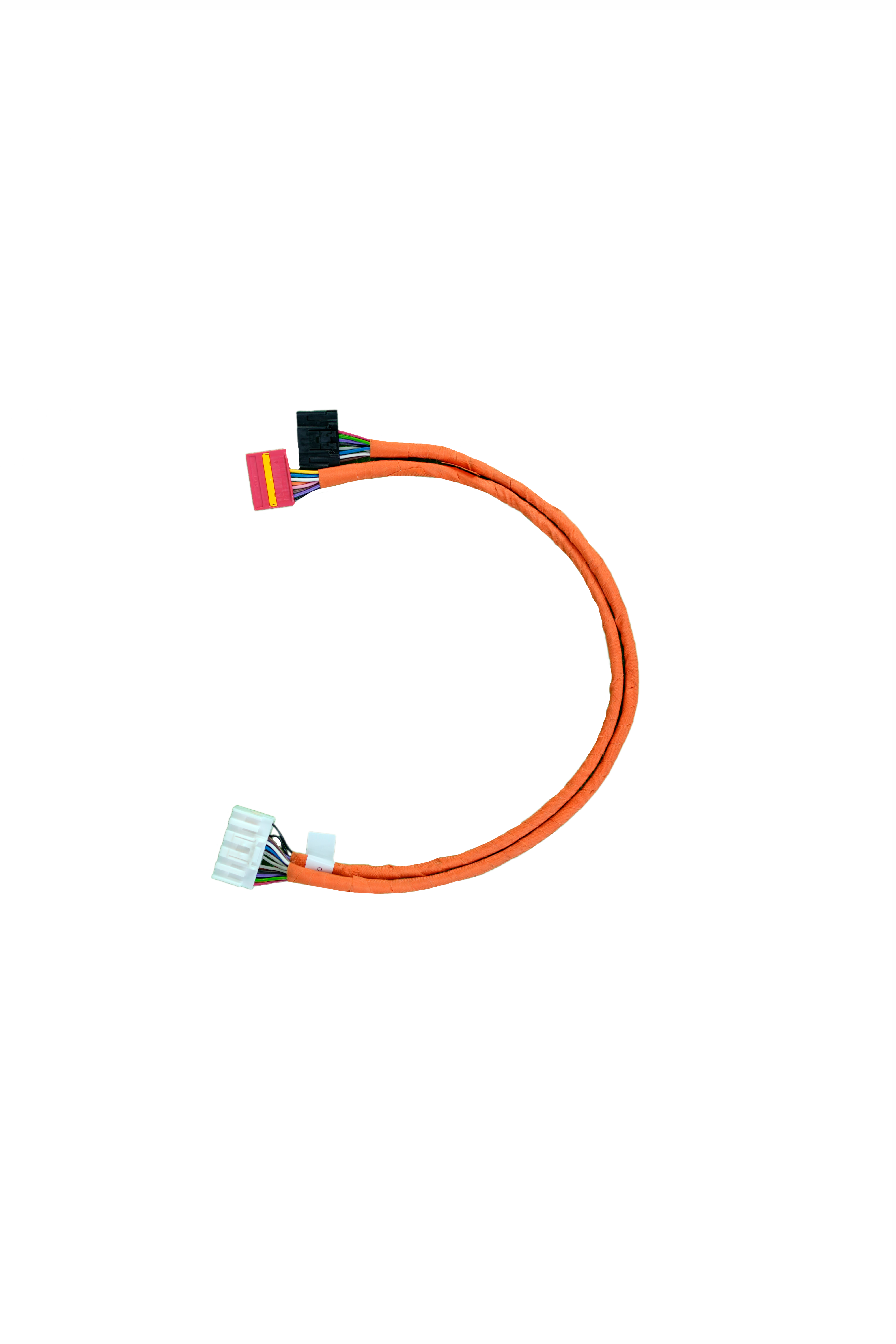

| A928 – 130-000963 |  | OSE EV 2P15S-A | 2 (black/red) |
| A929 – 130-000964 |  | OSE EV 2P15S-B | 2 (blue / grey) |
| A937 – 130-000994 |  | OSE EV 3P9S | 2 (red/black) |

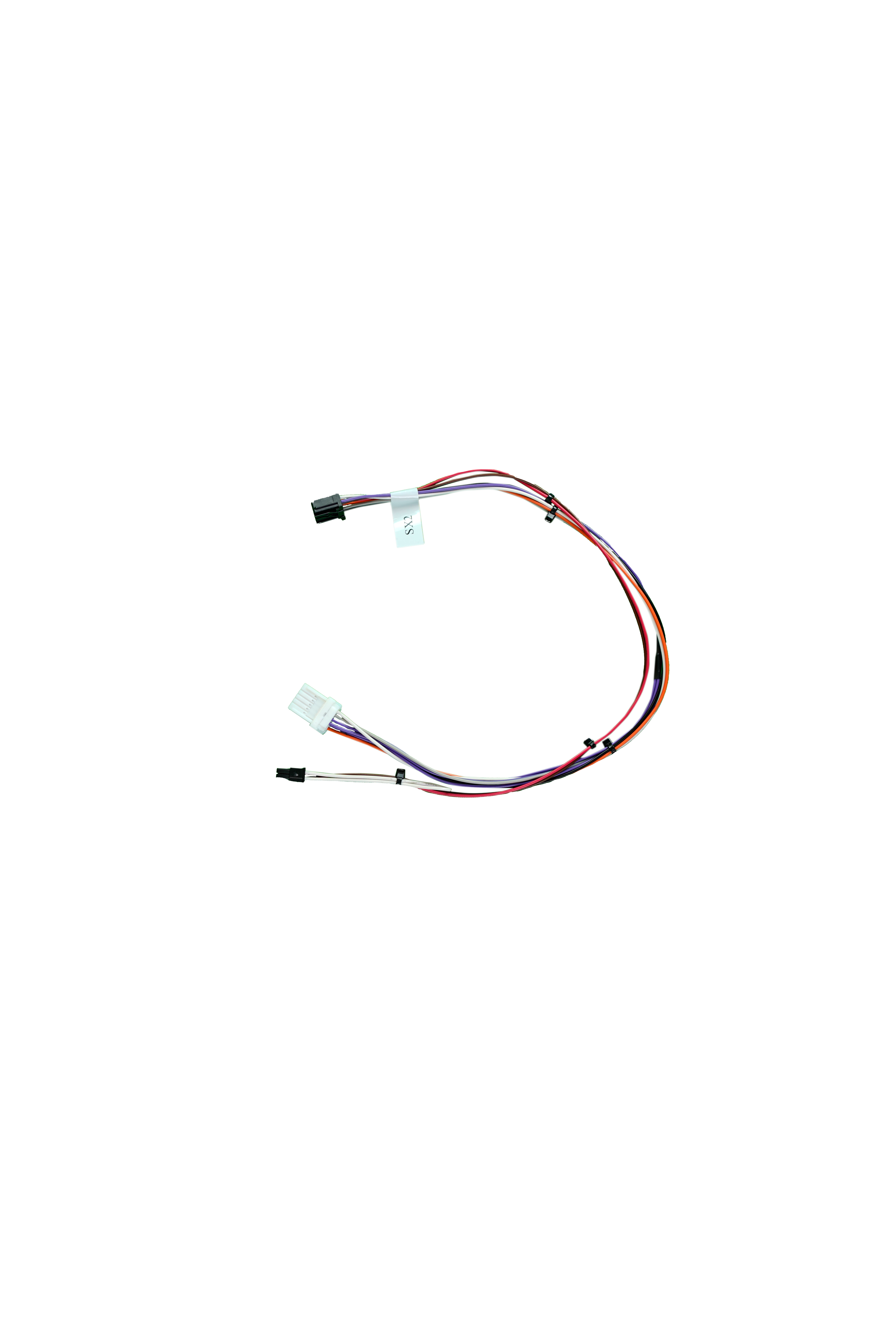

| A988 – 130-001041 |  | SX2 | |
| 130-001043 (part of A989 Kit) | Work in progress | SX2e / 130-001043 | |
| A1005 -130-001125 |  | NE EV PE | 3 (gray / black + black) |
| A1006 -130-001127 | Work in progress | TSD-A01 | |
| A1007 -130-001126 | Work in progress | US4 HEV |
IMI-Box based cables
As of 2025, new cables released work with the IMI-2404 (IMI-Box).
Using IMI Cables has benefits:
- When using IMI based cables, no separate temperature cable is needed.
- There is only 1 IMI Box instead of multiple Interface Boxes
- The IMI-Box has an integrated infrared temperature sensor capable of reading the module temperature.
An example of an IMI cable is the A1023H used for AX EV as shown below:
