Please find documentation on Temperature cables available for the Hyundai xMB in the table here below.
Could you not find the cable you are looking for, or cannot determine which part number represents your cable? Please contact Midtronics using the information on the Contact page.
Simply click on the picture to enlarge it and zoom in.
| Part Number | Picture | Label/Tag | Connectors at Module side (Count and Colour) |
|---|---|---|---|
| A845 – 130-000825 |  | F-3 (AE EV PE) | |

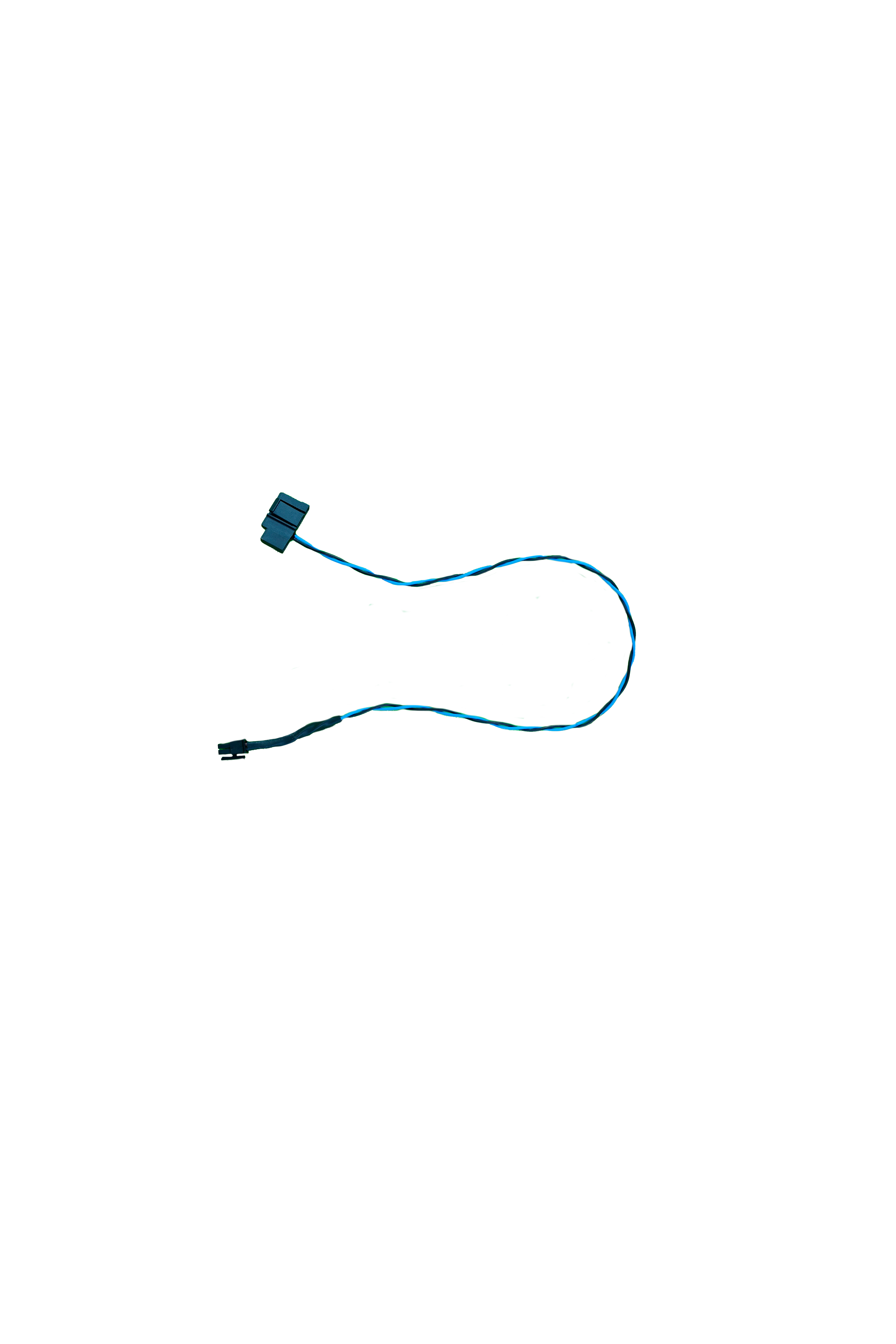

| A849 – 130-000849 |  | F-4 NEEV | 1 (black) |

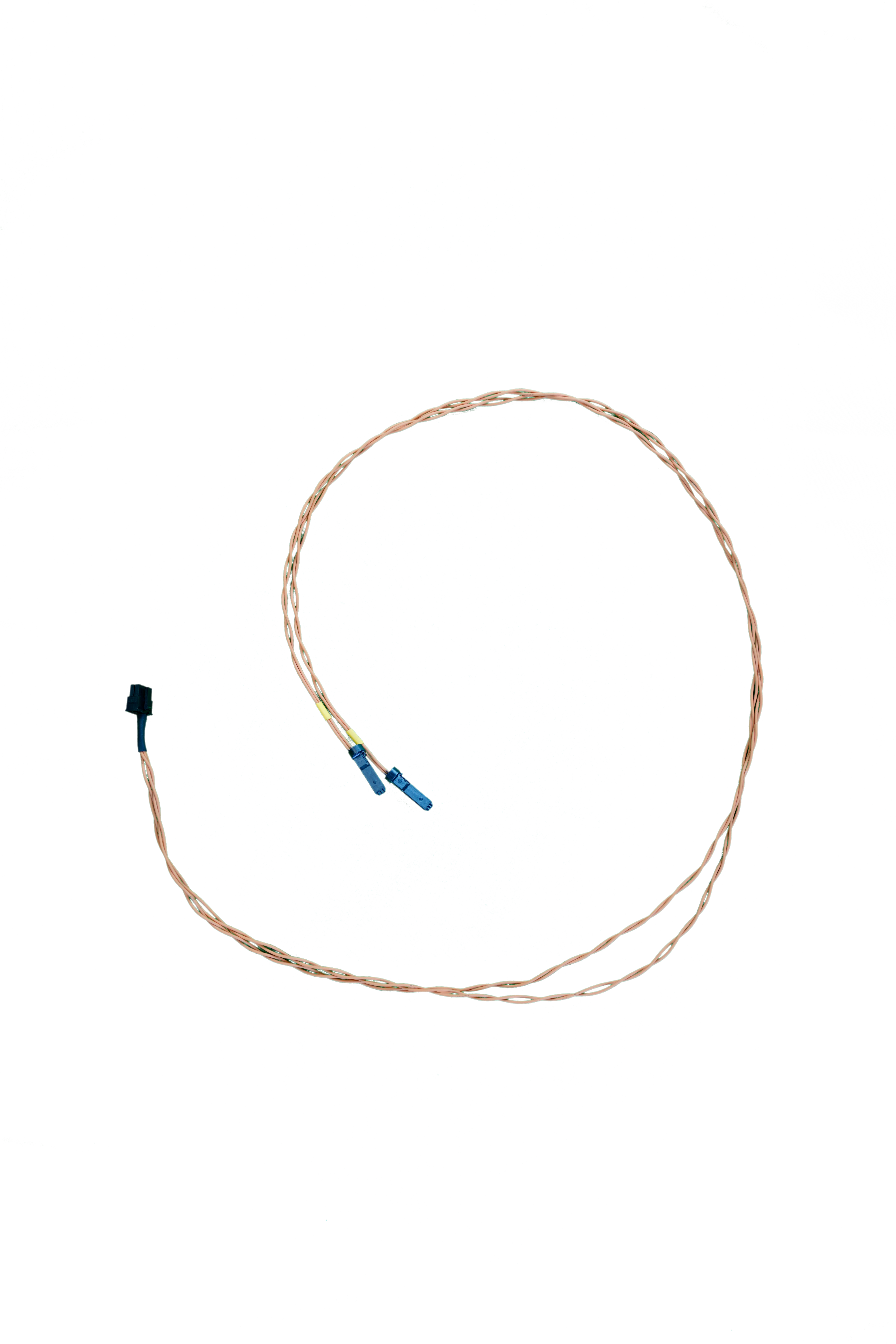

| A855 – 430-000591 |  | None, referred to as “OS EV Temp” | 2 (black / black) |
| A938 – 130-000981 | Work in progress | NX4 PHEV | |

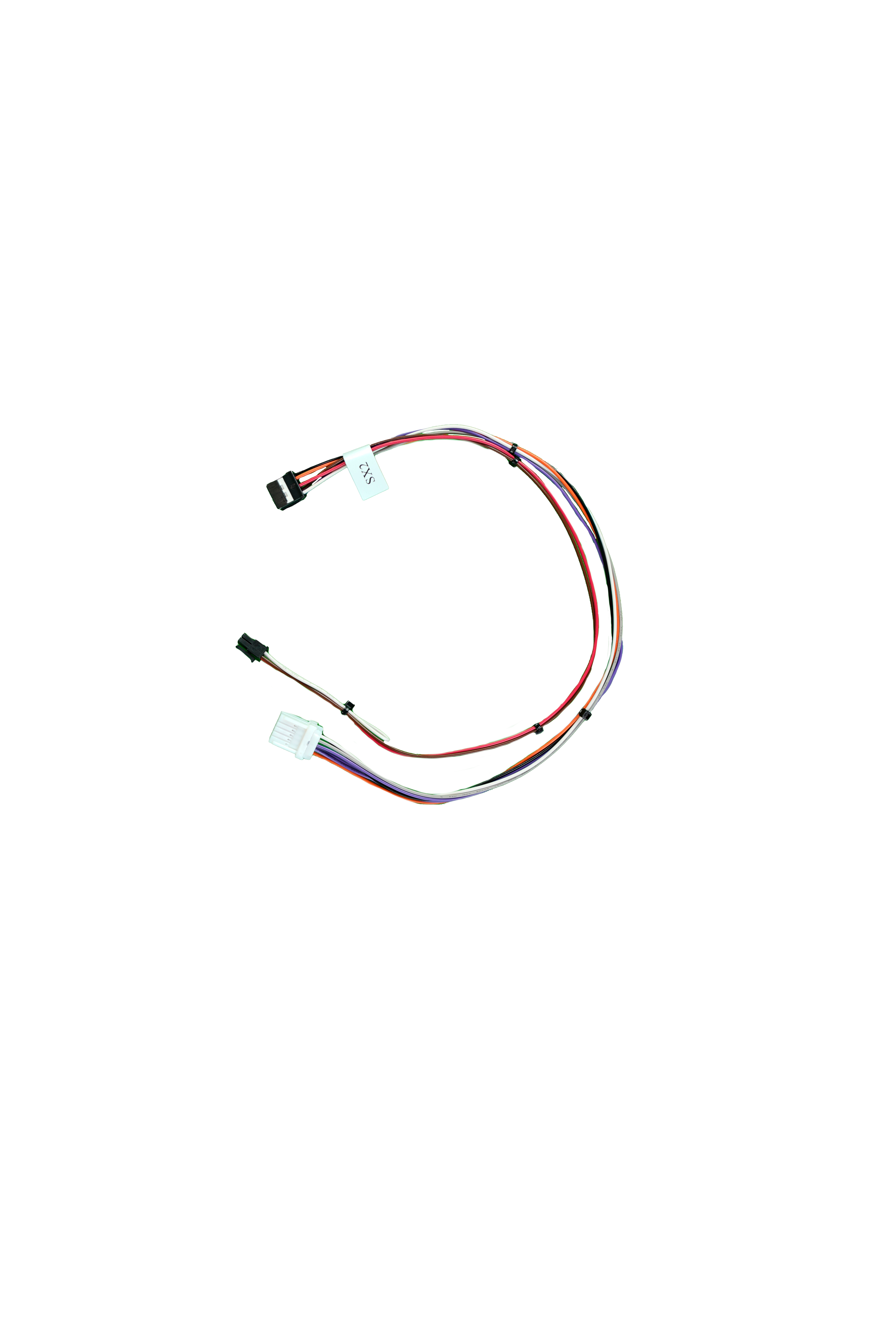

| A988 – 130-001041 |  | SX2 | |
| 130-001044 (part of A989 Kit) | Work in progress | SX2e 2 / 130-001044 | |

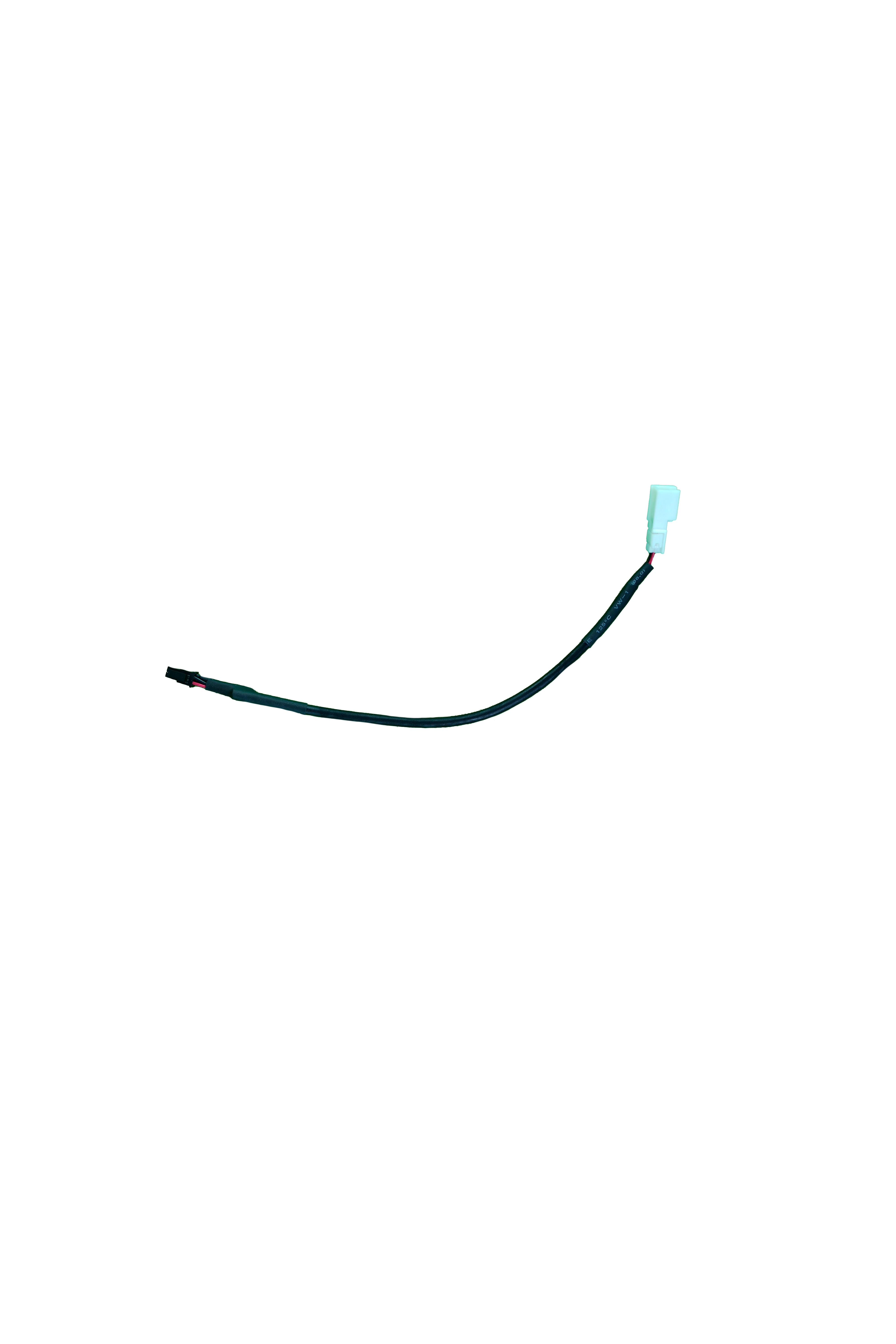

| A841 – 130-000769 |  | AE EV 6cell | |
| A846 – 162-000080 |  | Not a cable. |This is a BUS BAR (needed for AE EV) |
